Threaded Termination Stud System

Hayn's Threaded Termination Stud System is a Traditional Cable Rail end fitting available as a turnbuckle assembly or fixed stop, in machine swage, Hayn Grip, and Handy Crimp configurations for wire sizes from 1/8" through 1/4" and post sizes from 2" through 6".

Download Hayn Lines Catalog

Threaded Termination Stud Systems by Hayn

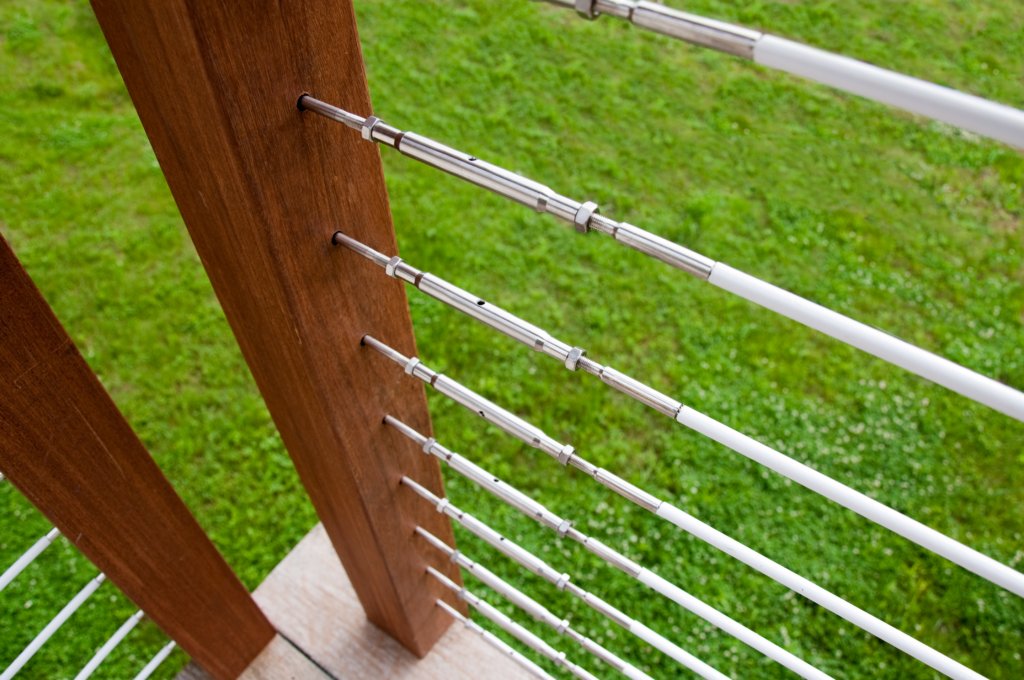

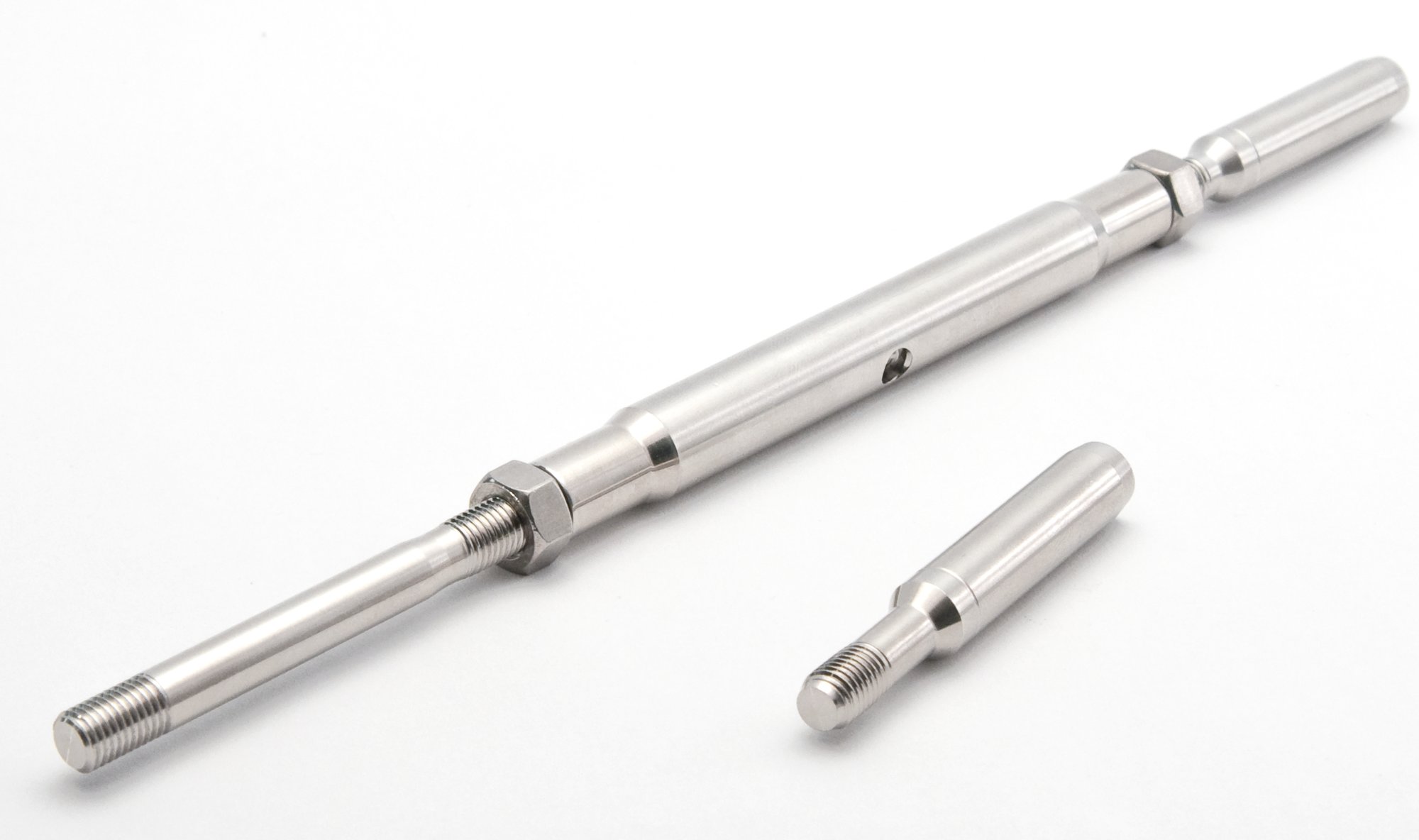

The Threaded Termination Stud System threads directly through the end post and tensions against it using a hex nut and flat washer, with a Cap (Acorn) Nut threaded onto the protruding stud to lock the tensioning nut in position and finish the installation cleanly. It is one of the most versatile tensioning systems in the Hayn Traditional cable rail lineup — the turnbuckle assembly version provides 3" to 3-1/4" of adjustment range and a 50-foot maximum run length per span, and post size options of 2", 4", and 6" on several wire sizes make it compatible with the full range of wood, steel, and composite post geometries common in residential and commercial applications.

Index

Threaded Termination Stud Turnbuckle Assembly – Machine Swage

Part #	Thread	Wire Size	Max. Post Size	Adjustment Range	Max. Run Length
14TTLL18S	1/4-28	1/8″	2″	3″	50′
14TTLL18S4	1/4-28	1/8″	4″	3″	50′
14TTLL18S6	1/4-28	1/8″	6″	3″	50′
14TTLL532S	1/4-28	5/32″	2″	3″	50′
14TTLL316S	1/4-28	3/16″	2″	3″	50′
14TTLL316S4	1/4-28	3/16″	4″	3″	50′
14TTLL316S6	1/4-28	3/16″	6″	3″	50′
516TTLL316S	5/16-24	3/16″	2″	3-1/4″	50′
516TTLL14S	5/16-24	1/4″	2″	3-1/4″	50′

Note: See Angle Compensation and Termination Accessories for end fitting options.

Threaded Termination Stud Turnbuckle Assembly – Hayn Grip™

Part #	Thread	Wire Size	Max. Post Size	Adjustment Range	Max. Run Length
14TTHG18S	1/4-28	1/8″	2″	3″	50′
14TTHG18S4	1/4-28	1/8″	4″	3″	50′
14TTHG18S6	1/4-28	1/8″	6″	3″	50′
14TTHG316S	1/4-28	3/16″	2″	3″	50′
14TTHG316S4	1/4-28	3/16″	4″	3″	50′

Threaded Termination Stud Turnbuckle Assembly – Handy Crimp™

Part #	Thread	Wire Size	Max. Post Size	Adjustment Range	Max. Run Length
14TTCLL18S	1/4-28	1/8″	2″	3″	50′
14TTCLL18S4	1/4-28	1/8″	4″	3″	50′
14TTCLL18S6	1/4-28	1/8″	6″	3″	50′
14TTCLL316S	1/4-28	3/16″	2″	3″	50′
14TTCLL316S4	1/4-28	3/16″	4″	3″	50′
14TTCLL316S6	1/4-28	3/16″	6″	3″	50′

Threaded Termination Stud Fixed Stop – Machine Swage

Part #	Thread	Wire Size
14LLE18RH	1/4-28	1/8″
14LLE532RH	1/4-28	5/32″
14LLE316RH	1/4-28	3/16″
516LLE316RH	5/16-24	3/16″
516LLE14RH	5/16-24	1/4″

Threaded Termination Stud Fixed Stop – Hayn Grip™

Part #	Thread	Wire Size
14HGST18RH	1/4-28	1/8″
516HGST316RH	5/16-24	3/16″

Threaded Termination Stud Fixed Stop – Handy Crimp™

Part #	Thread	Wire Size
14CLLE18RH	1/4-28	1/8″
14CLLE316RH	1/4-28	3/16″

Machine swage assemblies are factory assembled to field dimensions by an experienced technician using a hydraulic swaging unit, and require a job site take-off to ensure cables are cut to the correct length before assembly. Hayn Grip and Handy Crimp versions are available for on-site installation across 1/8" and 3/16" wire sizes for projects where field termination is preferred. The fixed stop version covers wire sizes from 1/8" through 1/4" in all three installation methods for the non-tensioning end of the run. See the Angle Compensation and Termination Accessories page for compatible end fitting options including ball ends, bevel washers, and dome nuts.
