Tension Rods are custom made to order. Contact us for additional details.

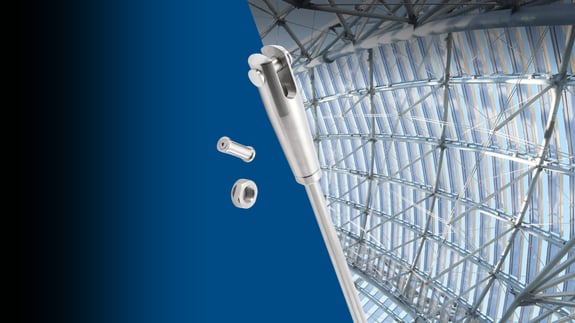

Fork – 316 Stainless Steel
| Part # | Rod / Thread Diameter | Pin Size | Length | Jaw Depth | Fork Opening |
|---|---|---|---|---|---|
| AAF14L | 1/4-28 LH | 1/4″ | 1-13/16″ | 19/32″ | 1/4″ |
| AAF14R | 1/4-28 RH | 1/4″ | 1-13/16″ | 19/32″ | 1/4″ |
| AAF516L | 5/16-24 LH | 5/16″ | 2-3/8″ | 5/8″ | 5/16″ |
| AAF516R | 5/16-24 RH | 5/16″ | 2-3/8″ | 5/8″ | 5/16″ |
| AAF38L | 3/8-24 LH | 3/8″ | 3.0″ | 25/32″ | 3/8″ |
| AAF38R | 3/8-24 RH | 3/8″ | 3.0″ | 25/32″ | 3/8″ |
| AAF12L | 1/2-20 LH | 1/2″ | 4.0″ | 1-1/8″ | 1/2″ |
| AAF12R | 1/2-20 RH | 1/2″ | 4.0″ | 1-1/8″ | 1/2″ |
| AAF58L | 5/8-18 LH | 5/8″ | 4-3/4″ | 1-1/4″ | 5/8″ |
| AAF58R | 5/8-18 RH | 5/8″ | 4-3/4″ | 1-1/4″ | 5/8″ |
| AAF34L | 3/4-16 LH | 3/4″ | 5-3/8″ | 1-1/2″ | 3/4″ |
| AAF34R | 3/4-16 RH | 3/4″ | 5-3/8″ | 1-1/2″ | 3/4″ |
| AAF78L | 7/8-14 LH | 7/8″ | 6.0″ | 1-3/4″ | 7/8″ |
| AAF78R | 7/8-14 RH | 7/8″ | 6.0″ | 1-3/4″ | 7/8″ |
| AAF1L | 1.0-12 LH | 1.0″ | 6-7/8″ | 2.0″ | 1.0″ |
| AAF1R | 1.0-12 RH | 1.0″ | 6-7/8″ | 2.0″ | 1.0″ |
Fork Lock Nut – Traditional Style
| Part # | Thread Size | Outside Dia. |
|---|---|---|
| ALN14L | 1/4-28 LH | 3/8″ |
| ALN14R | 1/4-28 RH | 3/8″ |
| ALN516L | 5/16-24 LH | 1/2″ |
| ALN516R | 5/16-24 RH | 1/2″ |
| ALN38L | 3/8-24 LH | 9/16″ |
| ALN38R | 3/8-24 RH | 9/16″ |
| ALN12L | 1/2-20 LH | 7/8″ |
| ALN12R | 1/2-20 RH | 7/8″ |
| ALN58L | 5/8-18 LH | 1-1/8″ |
| ALN58R | 5/8-18 RH | 1-1/8″ |
| ALN34L | 3/4-16 LH | 1-1/4″ |
| ALN34R | 3/4-16 RH | 1-1/4″ |
| ALN78L | 7/8-14 LH | 1-9/16″ |
| ALN78R | 7/8-14 RH | 1-9/16″ |
| ALN1L | 1.0-12 LH | 1-5/8″ |
| ALN1R | 1.0-12 RH | 1-5/8″ |
Fork Clevis Pin – Double Headed
| Pin Dia. | Head Dia. | Length | Part # |
|---|---|---|---|
| 1/4″ | 3/8″ | 5/8″ | ACP14A |
| 5/16″ | 7/16″ | 3/4″ | ACP516A |
| 3/8″ | 1/2″ | 7/8″ | ACP38A |
| 1/2″ | 5/8″ | 1-1/4″ | ACP12A |
| 5/8″ | 3/4″ | 1-1/2″ | ACP58A |
| 3/4″ | 7/8″ | 2.0″ | ACP34A |
| 7/8″ | 1.0″ | 2-1/4″ | ACP78A |
| 1.0″ | 1-1/4″ | 2-1/2″ | ACP1A |
