Toggle Jaw System Assemblies

toggle jaw system e1688148538232

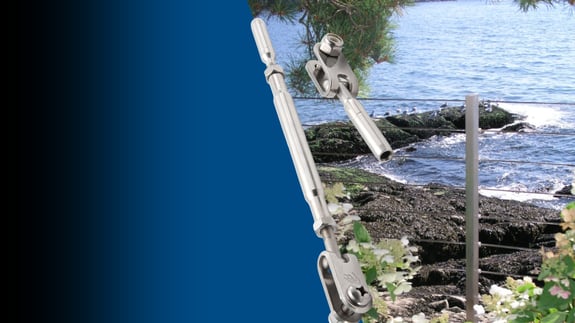

Toggle Jaw Turnbuckle Assembly – Traditional Design



Machine Swage – factory assembled to field dimensions

Part # Thread Wire Size Screw Size Jaw Width Adjustment Range Max. Run Length
10TTLL18A 10-32 1/8″ # 10 1/4″ 2″ 50′
14TTLL18A 1/4-28 1/8″ 1/4″ 1/4″ 3″ 50′
14TTLL532A 1/4-28 5/32″ 1/4″ 1/4″ 3″ 50′
14TTLL316A 1/4-28 3/16″ 1/4″ 1/4″ 3″ 50′
516TTLL316A 5/16-24 3/16″ 5/16″ 5/16″ 3-1/4″ 50′
516TTLL14A 5/16-24 1/4″ 5/16″ 5/16″ 3-1/4″ 50′
38TTLL14A 3/8-24 1/4″ 3/8″ 3/8″ 3-3/4″ 50′

Hayn Grip™ – on site install

Part # Thread Wire Size Screw Size Jaw Width Adjustment Range Max. Run Length
14TTHG18A 1/4-28 1/8″ 1/4″ 1/4″ 3″ 50′
14TTHG316A 1/4-28 3/16″ 1/4″ 1/4″ 3″ 50′

Handy Crimp™ – on site install

Part # Thread Wire Size Screw Size Jaw Width Adjustment Range Max. Run Length
14TTCLL18A 1/4-28 1/8″ 1/4″ 1/4″ 3″ 50′
14TTCLL316A 1/4-28 3/16″ 1/4″ 1/4″ 3″ 50′

Toggle Jaw – Traditional Design



Machine Swage – factory assembled to field dimensions

Part # Screw Size Wire Size Jaw Width
10TJLL18A #10 1/8″ 1/4″
14TJLL18A 1/4″ 1/8″ 1/4″
14TJLL532A 1/4″ 5/32″” 1/4″
14TJLL316A 1/4″ 3/16″ 1/4″
516TJLL316A 5/16″ 3/16″ 5/16″
516TJLL14A 5/16″ 1/4″ 5/16″
38TJLL14A 3/8″ 1/4″ 3/8″

Hayn Grip™ – on site install

Part # Screw Size Wire Size Jaw Width
14TJHG18A 1/4″ 1/8″ 1/4″
14TJHG316A 1/4″ 3/16″ 1/4″

Handy Crimp™ – on site install

Part # Screw Size Wire Size Jaw Width
14TJCLL18A 1/4″ 1/8″ 1/4″
14TJCLL316A 1/4″ 3/16″ 1/4″
