Find step-by-step installation guidance for Hayn's core fitting systems — Hi-MOD compression fittings, Handy Crimp fittings, and swaging for compact strand wire rope — all in one place.
Compression Fittings by Hayn

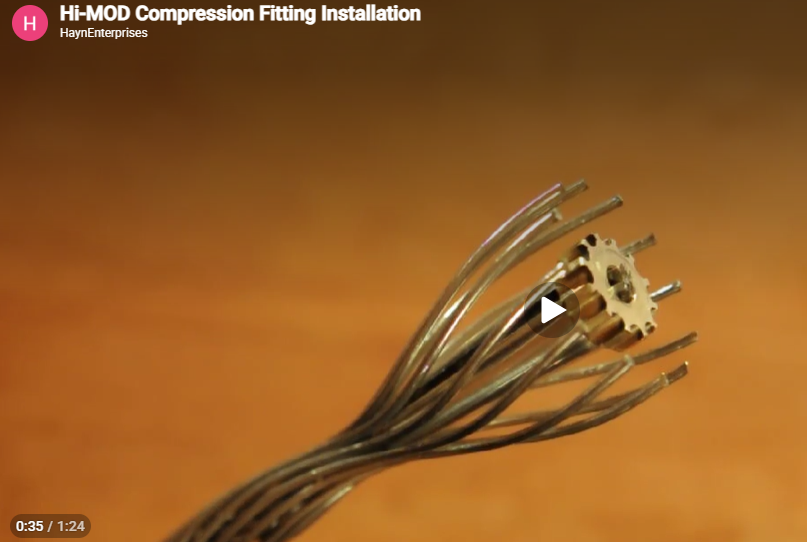

The Hi-MOD guide walks through the full assembly sequence, from untwisting wire strands and seating the cone and Crown Ring to final tightening (hand-tight plus a half-turn) with Loctite thread locker, and covers routine maintenance since fittings are fully reusable unless the cone is distorted.
The Handy Crimp instructions cover a straightforward seven-step process — strip, insert, crimp three times rotating 90° between each, then measure to spec with a caliper or micrometer.
The Swaging Techniques guide is written for experienced rigging professionals working with standard & compact strand wire rope, detailing surface prep, Loctite Sleeve Retainer and diamond powder application, proper swage machine operation, and post-swage inspection to confirm full pull-out strength was achieved.
