Handy Crimp Instructions

Download Handy Crimp Instructions

STEP 1

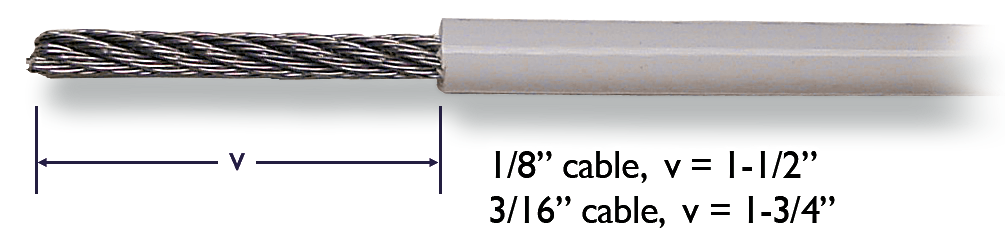

Fig #1

Make sure you have the proper equipment and all parts required. Use a sharp knife to strip vinyl cover (if required).

STEP 2

If you are using vinyl coated cable it will be necessary to strip back the coating as shown in Fig #1.

STEP 3

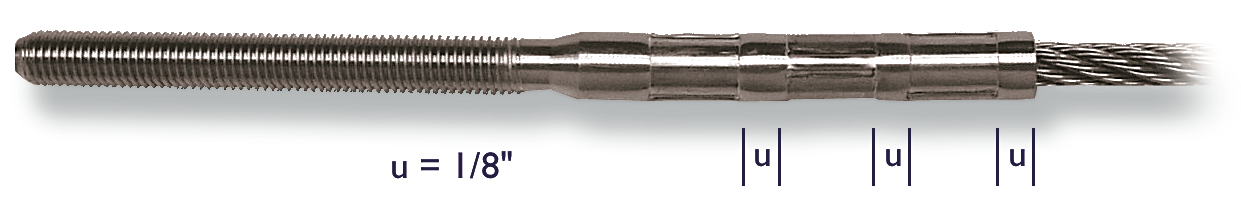

Fig #2

Insert stripped cable into Handy Crimp fitting and crimp 3 times as shown in Fig #2. Install 3 crimps 1/8″ from end of fitting and 1/8″ apart, rotate 90 degrees for each crimp to ensure straightness of fitting.

STEP 4

Attach the crimped on end fitting to connection point. Run cable to other connection point. Ensure hardware is adjusted to 2/3rds open position.

STEP 5

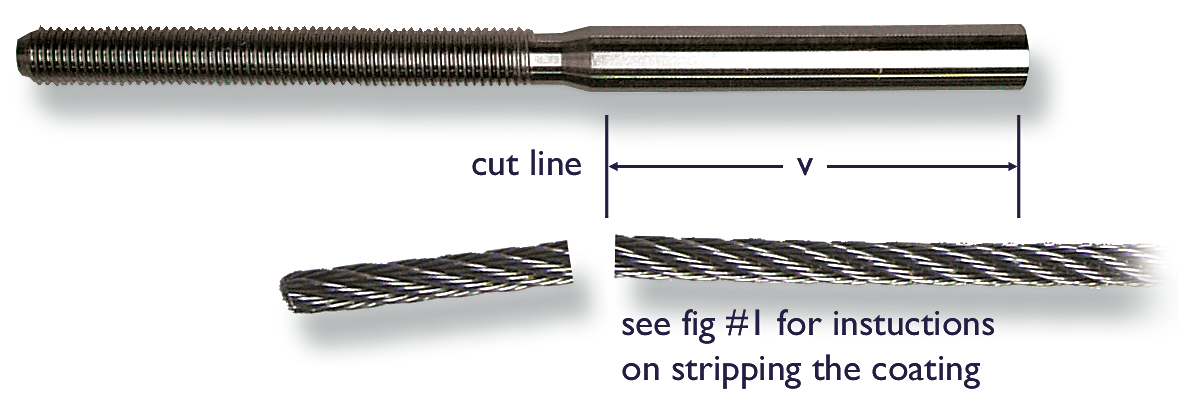

Fig #3

Attach un-crimped Handy Crimp fitting to other connection point and pull cable tightly along side. Measure for cut as shown in Fig #3.

STEP 6

Repeat steps #2 and #3 for un-crimped end fitting.

STEP 7

All crimps must be inspected utilizing a Micrometer or Caliper to the following specifications:

  • 1/8″ Wire – 0.185
  • 3/16″ Wire – 0.265
